Thermal Transfer Innovation: IsoMat Technology Achieves 5,000x Efficiency Over Traditional Materials

Engineering Deep Dive: The Science Behind IsoMat’s Thermal Transport System

Phase Change Fundamentals

The promised thermal performance stems from its sophisticated implementation of phase change thermodynamics. Traditional thermal management systems typically rely on sensible heat transfer, moving energy through temperature differentials in solid materials. While effective, these approaches face inherent limitations based on the thermal conductivity values of the materials used.

IsoMat takes a different approach by utilizing latent heat transfer through phase change. When a substance changes phase (from liquid to gas or vice versa), it can absorb or release large amounts of thermal energy without changing temperature. This principle allows heat pipes to transfer significantly more thermal energy than solid conductors of the same mass.

The working fluid inside IsoMat’s channels is carefully selected for its thermodynamic properties, including:

• Low boiling point appropriate for the target application temperature range
• High latent heat of vaporization (energy absorbed/released during phase change)
• Suitable vapor pressure characteristics
• Chemical compatibility with the aluminium container
• Long-term stability to ensure operational lifetime

Multi-Dimensional Heat Pipe Architecture

Standard heat pipes are cylindrical tubes that transfer heat linearly. The new technology’s innovation lies in its two-dimensional array of interconnected microchannels, which enable omnidirectional heat transport across a surface rather than along a single axis.

This design incorporates:

1. Evaporator regions – Areas where heat enters the system, causing the working fluid to vaporize
2. Vapour transport channels – Optimized pathways for vapour flow with minimal pressure drop
3. Condenser regions – Areas where heat exits the system as vapour condenses back to liquid
4. Capillary structures – Microscale features that enable passive liquid return through capillary action

The engineering challenge involves balancing several competing factors:

• Channel diameter (affects both vapour flow and capillary pressure)
• Wall thickness (structural integrity vs. thermal resistance)
• Internal surface treatments (wettability and nucleation site optimization)
• Void fraction (amount of space available for vapour flow)

IsoMat requires precision manufacturing techniques to create the internal microchannel structure while maintaining hermetic sealing. Likely approaches include:

• Roll-bonding processes where two aluminium sheets—one with etched channel patterns—are bonded through heat and pressure
• Extrusion methods for creating predetermined channel geometries
• Potentially incorporating sintered metal powders in specific regions to enhance capillary action

The manufacturing process must prevent contamination of the working fluid, as even minute impurities can significantly degrade performance through:

• Gas generation that creates vapour locks
• Chemical reactions that alter surface wetting characteristics
• Particulate deposition that obstructs flow channels

The company has claimed a staggering 5,000x efficiency improvement over solid aluminium or copper, but this requires some clarification. This likely refers to the system’s effective thermal conductivity rather than actual thermodynamic efficiency.

The effective thermal conductivity of a heat pipe can be calculated as:

k_effective = (Q × L) / (A × ΔT)

Where:

• Q is heat transfer rate (W)
• L is transport distance (m)
• A is cross-sectional area (m²)
• ΔT is the temperature difference (K)

For aluminium (k ≈ 205 W/m·K) and copper (k ≈ 400 W/m·K), a 5,000× improvement would suggest effective conductivities of approximately 1,000,000-2,000,000 W/m·K. Such values are theoretically possible, but until more data is available, we would take this with a pinch of salt.

While IsoMat offers substantial advantages, it faces several engineering constraints:

1. Operating temperature range—The working fluid must remain within its operational phase-change boundaries; performance degrades significantly outside these.
2. Heat flux limitations – Three potential limits affect maximum heat transfer:
   • Capillary limit: Maximum rate at which liquid can return to the evaporator
   • Boiling limit: Heat flux that causes continuous vapour formation, blocking the liquid return
   • Sonic limit: Vapor velocity reaching sonic conditions, limiting further flow increase
3. Orientation sensitivity – While less problematic than cylindrical heat pipes, flat designs may still have some gravity dependence affecting liquid return mechanisms.
4. Thermal resistance – Junction points between the IsoMat and heat sources/sinks create thermal resistances that can limit overall system performance.
5. Freeze-thaw cycling – Special design considerations prevent damage during solidification in applications with temperatures below the working fluid’s freezing point.

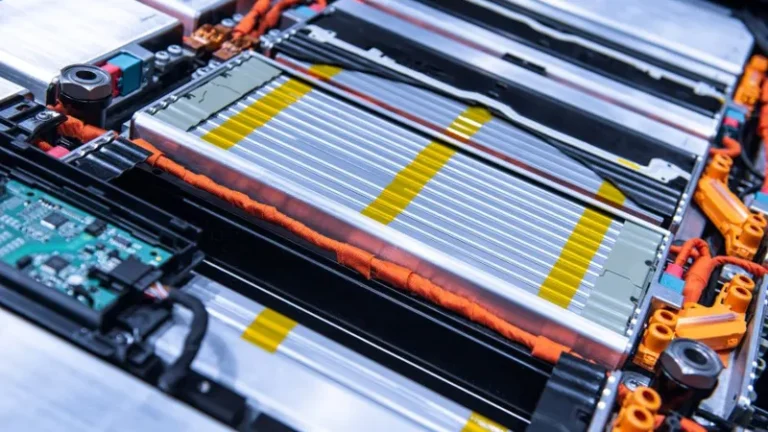

For dynamic applications like EV battery management, IsoMat likely incorporates active control elements:

• Temperature sensors to monitor thermal conditions
• Variable flow control for external cooling circuits
• Potentially switchable sections to modify heat transfer pathways based on conditions

This allows the system to adapt to varying thermal loads while maintaining optimal temperature uniformity across critical components.
